Blocks are used in lifting systems, to change load direction or to drag a load. Together with the wire rope, blocks are the connection between the load to be lifted and the lifting device. The basic objective of a lifting operation is to move the load to the desired location and land it safely, efficiently and without damage to the load, the equipment used and /or the surrounding area.

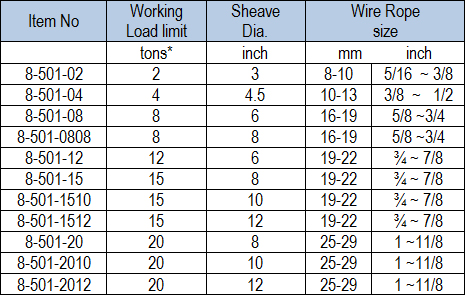

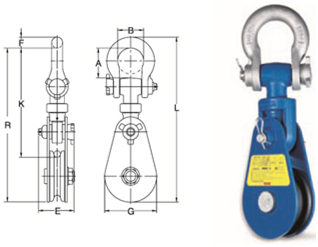

Snatch Block with Shackle
- YOKE blocks are manufactured from the highest quality tensile steel.
- YOKE blocks are available in sizes from 2 tonnes to 20 tonnes.
- YOKE blocks are designed with safety factor of 4: 1.
- YOKE block are available for wire rope sizes 5/16″ to 1-1/8″.
- YOKE blocks are supplied with model number, wire diameter and working load limit.
- YOKE block are supplied with test certificates and batch numbers for ease of traceability.
- YOKE blocks are manufactured with bronze bushing and grease fitting for ease of use and extended sheave life.
- YOKE offers custom blocks design upon request.
*Minimum ultimate load is 4 times the working load limit.
a)Light Snatch Block with Shackle
b)Forges Snatch block with shackle

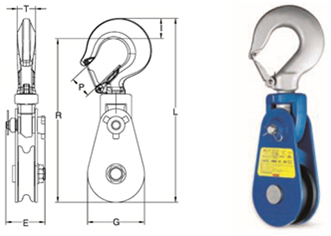

Snatch Block with Hook
- YOKE blocks are manufactured from the highest quality tensile steel.
- YOKE blocks are available in sizes from 2 tonnes to 20 tonnes.
- YOKE blocks are designed with safety factor of 4 : 1.
- YOKE block are available for wire rope sizes 5/16″ to 1-1/8″.
- YOKE blocks are supplied with model number, wire diameter and working load limit.
- YOKE block are supplied with test certs and batch numbers for ease of traceability.
- YOKE blocks are manufactured with bronze bushing and grease fitting for ease of use and extended sheave life.
- YOKE offers custom blocks design upon request
*Minimum ultimate load is 4 times the working load limit
a)Light Snatch block with Hook
b)Forged Snatch block with Hook
